Hydraulic Drilling Rig with Mud Circulation

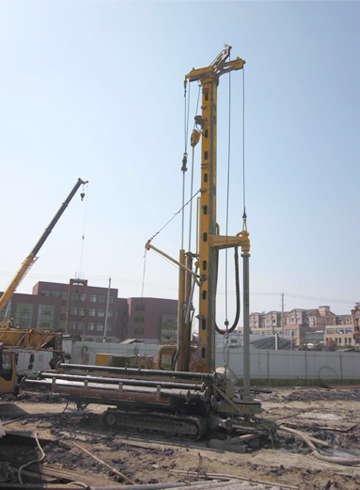

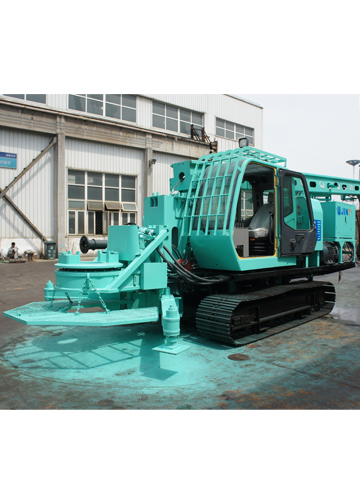

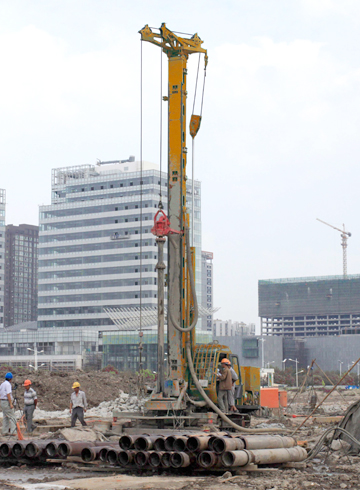

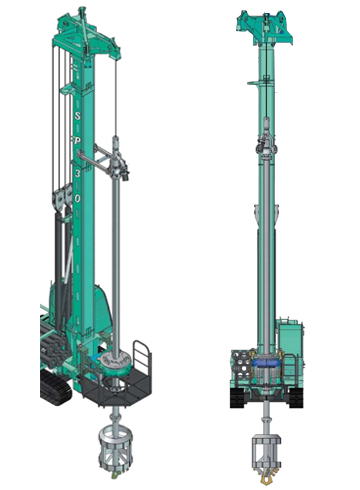

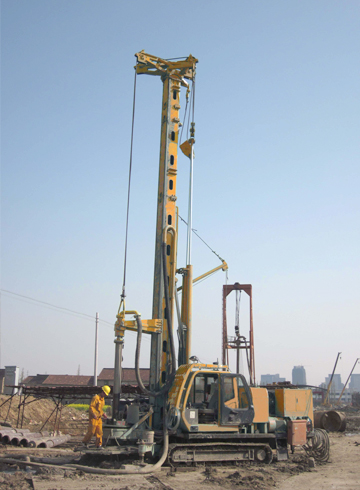

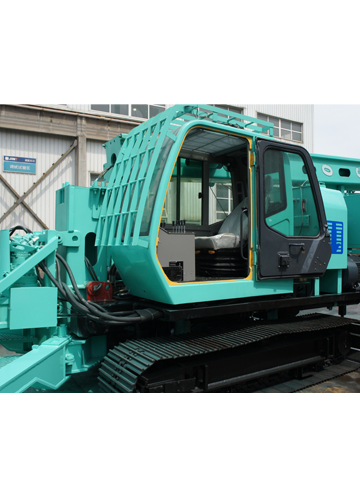

Our hydraulic drilling rig with mud circulation is a newly developed machine. The drilling technology is based on the GPS boring machine with mud circulation. However, this piling equipment is installed with hydraulic crawler chassis and mast, which makes it easy to move from one job after another. The hydraulic drilling rig is controlled hydraulically which improves the speed variation range and applicable for the different layers. Drilling with mud circulation, it perfectly protects the pile well from collapse. Reverse circulation can be applied as well for rock drilling. This piling equipment can be adjusted rightward and leftward while the mast can adjusted forward and backward. Therefore, the rotation center of rotary drive fitted on the bottom of the mast can be vertical to the level.


Hydraulic Drilling Rig £¬pilingmachines Hydraulic Drilling Rig £¬pilingmachines Hydraulic Drilling Rig £¬pilingmachines Hydraulic Drilling Rig £¬pilingmachines
Hydraulic Drilling Rig £¬pilingmachines Hydraulic Drilling Rig £¬pilingmachines




Details
Features of Hydraulic Drilling Rig with Mud Circulation

1. The rotary head has unique designed seal that guarantees the slurry not to enter the case of rotary head.

2. Mast head of this piling equipment can be rotated so that the driving pipe can avoid opening and does not fall to the ground,     thus reduces labor strength.

3. The hoisting cylinder can be used to replace winches. It has large hoisting force and is easy for maintenance.
4. The whole set of round pipes can be fitted on the base of the hydraulic drilling rig, which improves the mobility of the     machine.

5. The extended length of the drilling pipes reduces the numbers of increasing pipes and improves the drilling efficiency.

6. Replacing the different drilling tools can make this piling equipment easily realize circulation and reverse circulation drilling.
Parameters of Hydraulic Drilling Rig with Mud Circulation

Pile Diameter: 600 mm up to 2000 mm is applicable

Pile Depth: 60 m or more
